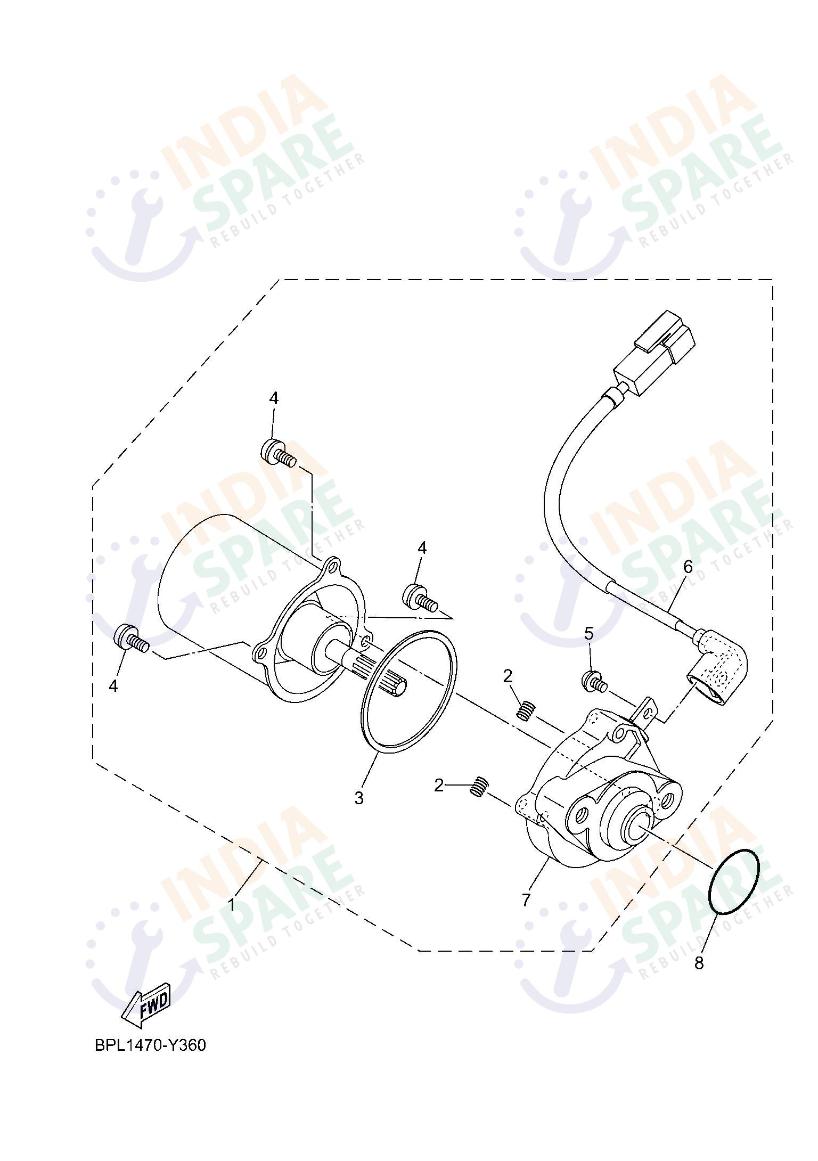

STARTING MOTOR
DM46
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BPLH18000000 | STARTING MOTOR ASSY | ₹ 2028 | 1 | ||
| 2 | BKHH18130000 | SPRING, BRUSH | ₹ 9 | 2 | ||
| 3 | BKHH18440000 | GASKET | ₹ 18 | 1 | ||
| 4 | BKHH18460000 | SCREW | ₹ 18 | 3 | ||
| 5 | BKHH182S0000 | SCREW | ₹ 9 | 1 | ||
| 6 | BPLH18150000 | CORD, STARTER MOTOR | ₹ 129 | 1 | ||
| 7 | BPLH18010000 | BRUSH SET | ₹ 497 | 1 | ||
| 8 | 932102681000 | O-RING | ₹ 16 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Effortless ignition represents the start of every glorious journey you take with your trusted Yamaha R15 V4 through city or coast. The Starting Motor assembly remains a critical mechanical piece for riders who require immediate response whenever they press the ignition button. Our catalog provides the complete Starting Motor Assy along with specialized maintenance components like the original Brush Set plus durable O-Rings. These parts feature heavy duty copper windings along with specialized gaskets meant to resist internal heat during repetitive starting cycles throughout the day. Authenticity in the Brush plus Cord setups prevents slow cranking plus protects the main battery against unnecessary drainage due to high electrical resistance. Riders who depend on their Yamaha R15 V4 for daily transportation trust these factory specified parts to function perfectly in diverse climates including wet monsoons. Ensure that your motor spins with maximum efficiency by using genuine replacement kits that mirror the exact technical specifications of the original assembly.
