WINDSHIELD
DM46
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWF83810000 | WINDSHIELD | ₹ 398 | 1 | ||
| 2 | 901790580400 | NUT | ₹ 10 | 6 | ||

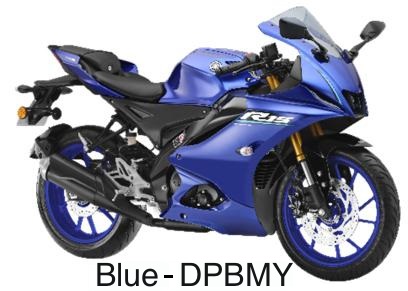

| 3A | BCWXF83520P1 | PANEL ASSY | ₹ 1281 | 1 | FOR DPBMY | |

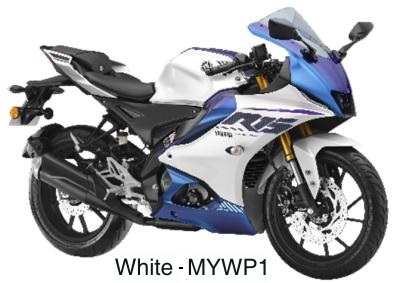

| 3B | BCWXF83500P9 | PANEL ASSY | ₹ 1281 | 1 | FOR MYWP1 | |
| 4A | DM4F83913000 | GRAPHIC 1 | ₹ 75 | 1 | FOR DPBMY | |
| 4B | DM4F83915000 | GRAPHIC 1 | ₹ 50 | 1 | FOR MYWP1 | |
| 5 | DM4F83923000 | GRAPHIC 2 | ₹ 75 | 1 | FOR DPBMY | |
| 6 | DM4F839A0000 | GRAPHIC 7 | ₹ 50 | 1 | FOR DPBMY | |
| 7 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 8 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 6 | ||
| 9 | BCWF835G0000 | BODY FRONT UPPER 1 | ₹ 341 | 1 | ||
| 10 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 12 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 13 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 14 | 905200583800 | DAMPER PLATE | ₹ 8 | 2 | ||
| 15 | BCWF83560000 | STAY 1 | ₹ 1069 | 1 | ||
| 16 | 901050800200 | BOLT WASHER BASED | ₹ 8 | 2 | ||
| 17 | 904801356700 | GROMMET | ₹ 8 | 1 | ||
| 18 | BK7F62800000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 455 | 1 | ||
| 19 | BK7F62900000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 455 | 1 | ||
| 20 | BCWF84830000 | PLATE RUBBER 1 | ₹ 28 | 2 | ||
| 21 | BCWF84840000 | PLATE RUBBER 2 | ₹ 180 | 1 | ||
| 22 | 913170603000 | BOLT | ₹ 15 | 4 | ||
| 23 | 903870613100 | COLLAR | ₹ 11 | 4 | ||
| 24 | BK7F16850000 | BRACKET LICENSE | ₹ 102 | 1 | ||
| 25 | 20PF34690000 | CAP BOLT | ₹ 2 | 4 | ||
| 26A | BCWF117V00P2 | COVER 7 | ₹ 1066 | 1 | FOR DPBMY | |
| 26B | BCWF117V00P7 | COVER 7 | ₹ 1060 | 1 | FOR MYWP1 | |
| 27 | 901830681800 | NUT SPRING | ₹ 23 | 1 | ||
| 28 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 29 | 904800155900 | GROMMET | ₹ 10 | 4 | ||
| 30 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 31 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 32 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 33 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 34 | BCWF172G0000 | PANEL 3 | ₹ 280 | 1 | ||
| 35 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 36 | 904801356700 | GROMMET | ₹ 8 | 1 | ||
| 37 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 38 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 39 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 40 | 903380718000 | PLUG | ₹ 84 | 1 | ||
| 41A | BCWF117W00P2 | COVER 8 | ₹ 1066 | 1 | FOR DPBMY | |
| 41B | BCWF117W00P7 | COVER 8 | ₹ 1060 | 1 | FOR MYWP1 | |
| 42 | 901830681800 | NUT SPRING | ₹ 23 | 1 | ||
| 43 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 44 | 904800155900 | GROMMET | ₹ 10 | 4 | ||
| 45 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 46 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 47 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 48 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 49 | BCWF172H0000 | PANEL 4 | ₹ 280 | 1 | ||
| 50 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 51 | 904801356700 | GROMMET | ₹ 8 | 1 | ||
| 52 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 53 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 54 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 55 | 903380718000 | PLUG | ₹ 84 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Aero dynamic grace defines the front silhouette of the Yamaha R15 V4 while protecting the rider from turbulent air at high velocities. This Windshield assembly provides more than just visual appeal as it houses critical viewing plus body components required for aggressive riding positions. Included within this section you will find the main Windshield along with specialized Mirror Assy setups for both the Left plus Right side. Durable materials used in the Graphic sets plus Bracket kits ensure that the bodywork stays vibrant while maintaining structural integrity during vibrations. Original components like the Rear View Mirrors provide vibration free visibility allowing the rider to monitor surrounding traffic without distortion on highways. Every specialized Nut Spring plus Collar plus Screw kit listed ensures that the fairing stays snug plus silent regardless of the wind speed. Secure the front profile of your Yamaha R15 V4 with these authentic factory body parts meant for a perfect fit plus ultimate aesthetic finish.
