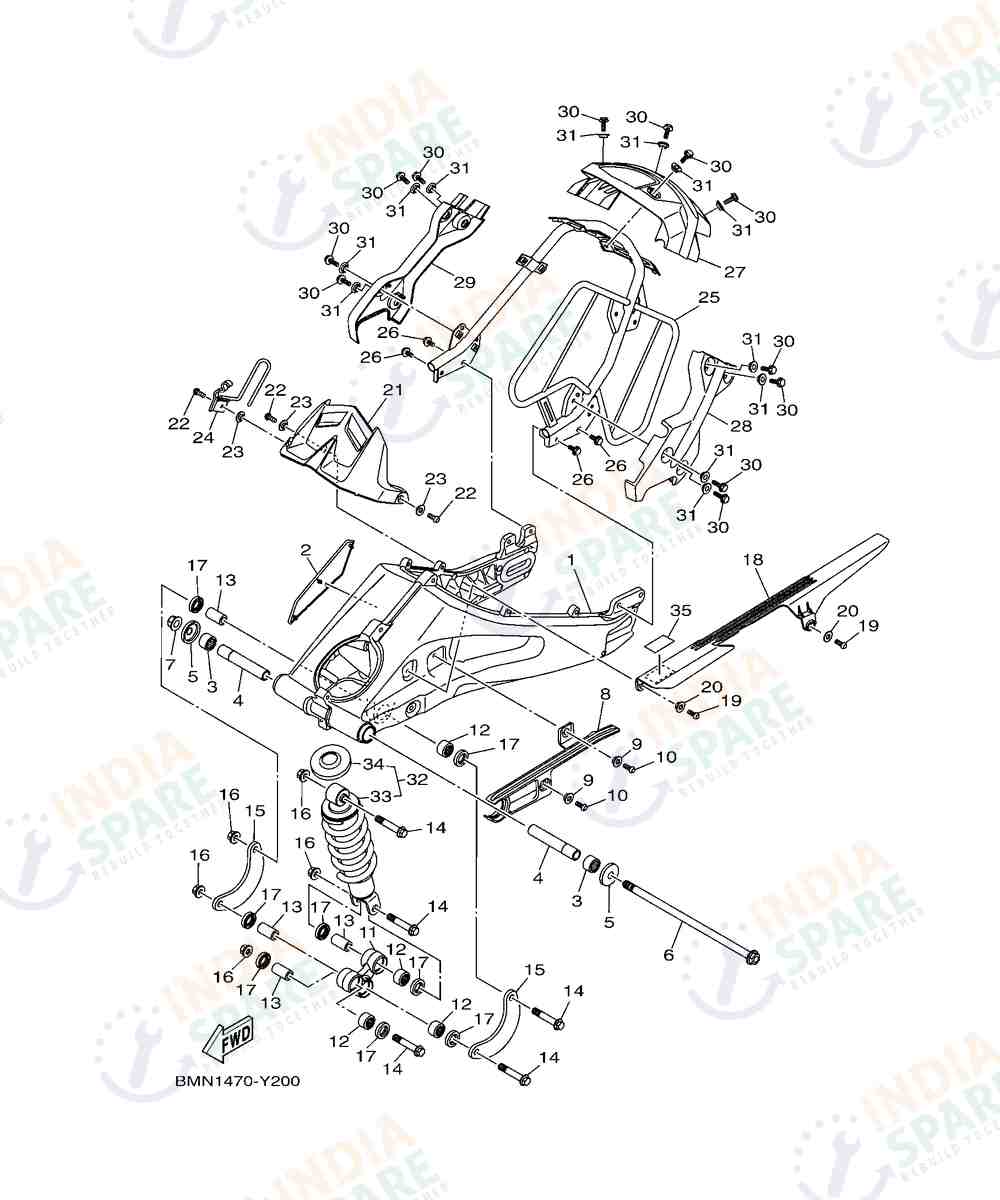

REAR ARM & SUSPENSION
DM48
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWF21100000 | REAR ARM COMP. | ₹ 7605 | 1 | ||
| 2 | BK7F135F0100 | COVER | ₹ 9 | 1 | ||
| 3 | 93317318Y500 | BEARING | ₹ 253 | 2 | ||
| 4 | BK7F21840000 | BUSH | ₹ 142 | 2 | ||
| 5 | 1CKF21280000 | COVER THRUST 1 | ₹ 21 | 2 | ||
| 6 | BK7F21410000 | SHAFT PIVOT | ₹ 110 | 1 | ||
| 7 | 901851280500 | NUT SELF-LOCKING | ₹ 55 | 1 | ||
| 8 | BK7F21510000 | SEAL GUARD | ₹ 59 | 1 | ||
| 9 | 90387068S100 | COLLAR | ₹ 12 | 2 | ||
| 10 | 920120601600 | BOLT BUTTON HEAD | ₹ 14 | 2 | ||
| 11 | 1CKF217A0000 | ARM RELAY | ₹ 509 | 1 | ||
| 12 | 93315317Y400 | BEARING | ₹ 80 | 4 | ||
| 13 | 903871081400 | COLLAR | ₹ 38 | 4 | ||
| 14 | 901051088700 | BOLT FLANGE | ₹ 20 | 5 | ||
| 15 | BK7F217F0000 | ROD CONNECTING 1 | ₹ 129 | 2 | ||
| 16 | 901791080500 | NUT | ₹ 53 | 5 | ||
| 17 | 931061780200 | OIL SEAL | ₹ 13 | 8 | ||
| 18 | BK7F23110100 | CASE CHAIN | ₹ 51 | 1 | ||
| 19 | 920120601600 | BOLT BUTTON HEAD | ₹ 14 | 2 | ||
| 20 | 90387068S100 | COLLAR | ₹ 12 | 2 | ||
| 21 | BK7F16500100 | REAR FENDER COMP. | ₹ 57 | 1 | ||
| 22 | 920120601600 | BOLT BUTTON HEAD | ₹ 14 | 3 | ||
| 23 | 90387068S100 | COLLAR | ₹ 12 | 3 | ||
| 24 | B9EF587A0000 | HOLDER BREAK HOSE | ₹ 32 | 1 | ||
| 25 | B97F16430400 | STAY FENDAR 3 | ₹ 797 | 1 | ||
| 26 | 958120601200 | BOLT FLANGE | ₹ 3 | 4 | ||
| 27 | BK7F23280000 | MUD GUARD 2 | ₹ 124 | 1 | ||
| 28 | BK7F16440000 | STAY REAR | ₹ 57 | 1 | ||
| 29 | BK7F16450000 | STAY REAR | ₹ 57 | 1 | ||
| 30 | 950270601600 | BOLT FLANGE | ₹ 5 | 12 | ||
| 31 | 903870807900 | COLLAR | ₹ 81 | 12 | ||
| 32 | BMNF220T0000 | SHOCK ABSORBER,RR ASSY | ₹ 3821 | 1 | ||
| 33 | BCWF22100100 | SHOCK ABSORBER ASSY, REAR | ₹ 3987 | 1 | ||
| 34 | BMNF22110000 | COVER | ₹ 101 | 1 | ||
| 35 | BK7F16680000 | LABEL TIRE | ₹ 7 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
